Electronic Device Development Services
We design and prototype electronic hardware, firmware and supporting software on contract basis.

design and prototype process FAQs
circuit board (PCB) design services

contact us by e-mail , or fill our contact form

Electronic Hardware Development - Circuit Design
  • Assessment and documentation of concept or legacy design.
  • High-level (block diagram) system design.
  • Detailed hardware design.

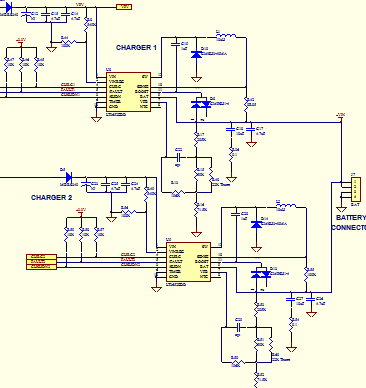

  • Schematics capture, wiring diagrams, bill of materials and unit cost analysis.

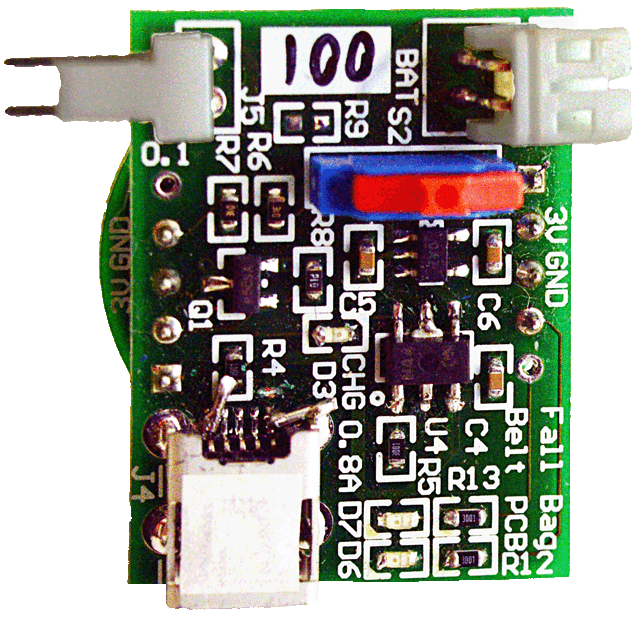

Electronic Hardware Development - Circuit Board Development
  • Assessment of mechanical constraints and electrical design rules.
  • Circuit board (PCB) layout.
  • 3D model of the board (with parts).
  • Production-ready CAM files set.
  • Fabrication and assembly of prototyping boards.
  • Prototype and test of the design.

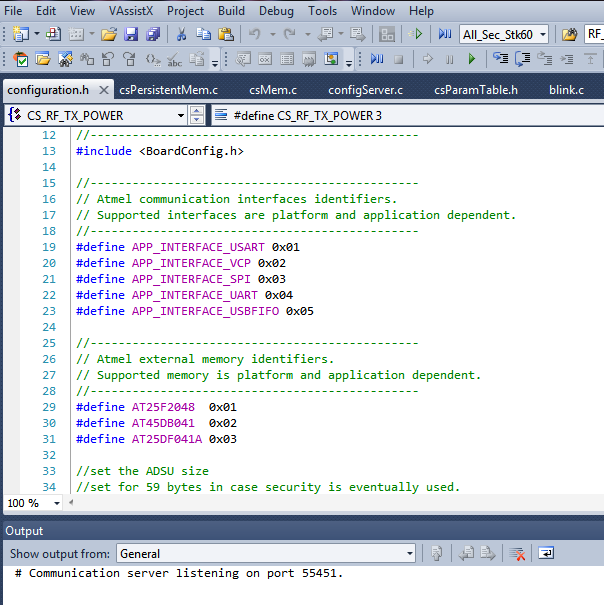

Electronic Device Development - Firmware and supporting Software*
  • Assessment of firmware and supporting software requirements.
  • High level (block diagram) system design.
  • Write and simulation of firmware and supporting software.
  • Integration and debug of the firmware and supporting software.
  • Documentation of design tests.

* Firmware is the program running in the micro-controller chip on the circuit board.
  Supporting software runs on a regular computer and communicates with the circuit board.

House Specialty - Custom Controller Boards for Machinery
  • Motors, heaters, hydraulic and lighting control.
  • Industrial, automotive, agricultural and building control applications.
  • Internet-based data logging and control (IoT).
  • Custom local user interface (keypad, touch screen, indicators).
  • Telemetry, control and proprietary networking by radio.

Circuit Board Production Support
  • Design and prototyping a production test jig (hardware and software).
  • Production CAM files (gerber, drill, pick and place, paste, BOM).
  • Production instructions and notes.

Regulatory Compliance Support
  • Preparing and escorting your product through FCC and safety certification.
  • Design for regulatory compliance (EMC, insulation, built-in redundancy).
  • Risk management and analysis documents.

Contact Form
  1. If you have questions or need us to sign a non disclosure agreement (NDA) first, please provide your contact details and request below. We respond to all queries within 2 business days.
  2. If you are ready to request a quote, please fill the information below. In order to quote, we need written material describing the hardware and its functionality. Please choose the appropriate files and click Submit.
  3. We will examine the files and e-mail you back within 2 business days. We may ask for more information, or give you a quote.
  4. If you accept our quote, please let us know by e-mail. Acceptance must be followed by an advance payment as detailed in the quote.
  5. We will commence work on the project once we recieve your acceptance and payment. We will advise you of the project's progress in regular e-mails, as explained in the quote.
  6. Please feel free contact us by phone 1-604-243-7458 or e-mail
